NameOTV-UD4 Multi-Channel ProVideo Streaming SDI HDMI Decoder
Brand Name:Dibview
Model Number:OTV-UD4
Product name:IP to ProVideo Streaming SDI HDMI Decoder
Input:4RJ45 IP
Resolution:SDI/HDMI: Up to 1080P60Hz
Audio Output:SDI/HDMI embedded or 3.5mm audio output
Media protocols:SRT/RTMP/HLS/TS over UDP/RTP/RTSP
Convert Up to 4 IP Streams to SDI/HDMI:Yes Support
Image scaling/frame rate conversion:Yes support
Application:IPTV/OTT System
Key words 01:IP TO SDI Decoder
Key words 02:IP TO HDMI Decoder

Product Description


OTV-UD4 is Dibview newest professional Multi-channel ProVideo Streaming Decoder developed based on an embedded hardware platform. It integrates 4 Channel HD video decoding modules through a card-type structure. The output supports dual SDI & HDMI interfaces, and both interfaces can output the same content simultaneously.


OTV-UD4 professional Multi-channel ProVideo Streaming Decoder can decode multiple IP streams into SDI & HDMI signal output and supports audio de-embedding output.

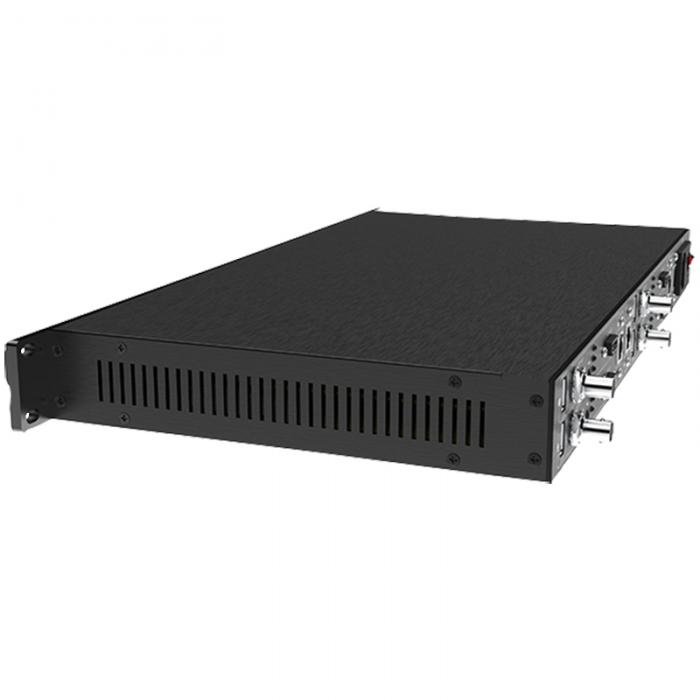

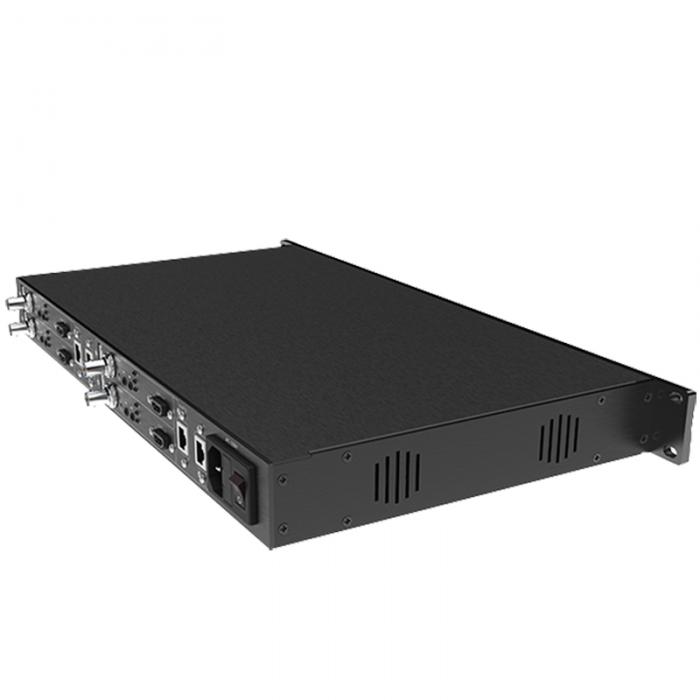

OTV-UD4 professional Multi-channel ProVideo Streaming Decoder can provides the features of stability, reliability, excellent network agility, which makes it a new generation HD network media terminal. Besides that, with Rack-mounted designing makes this device widely used in variety of field such as Hotel IPTV system, health care, remote education, news interview etc.

Key Features:

  • Embedded hardware, modular structure and more stable working.

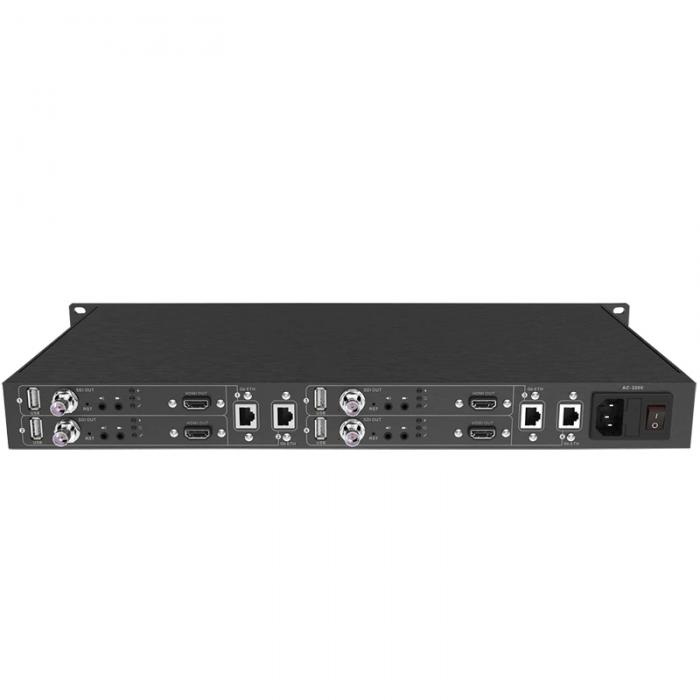

Card-type structure, each decoding module includes a network port, an SDI and an HDMI interface, a USB port, a pair of 3.5mm audio input and output ports. The modules are independent of each other and have a high error tolerance rate.

Embedded hardware decoding, no need to rely on computer decoding.

4Channel module consumes only 20W at full load, low power consumption and low heat dissipation.

  • High compatibility, suitable for various network transmission protocols to decoding SDI/HDMI

The input supports protocols such as RTMP/HLS/TS over UDP/RTP/RTSP/HLS, and is compatible with a variety of front-end encoding products, streaming media servers, network cameras, etc.

SRT supported to ensure secure and reliable transmission.

The output supports dual SDI/HDMI interfaces, and both interfaces can output the same content simultaneously.

The input end supports 1080P60 HD resolution, which is backward compatible, and the output end resolution is adjustable.

Sound can be output with HDMI/SDI, or independently from 3.5mm audio port.

  • Powerful decoding ability, it can output HD smooth image for low bit rate video and network packet loss video.

Adopting Dibview proprietary image enhancement and error tolerance technology, it has strong anti-error capability, and can output clearly and without distortion for low-bit-rate encoded video and about 10% network packet loss video;

Low decoding latency, less than 200ms decoding delay in typical network environment, and the delay can be adjusted according to the network environment. Supported global live video platform (tested): YouTube, UStream, Twitch and so on.

  • Image scaling/frame rate conversion

Technical Specifications:



Video Decoding

Input: 4*RJ45

Video Output:4*SDI + 4*HDMI

1*SD/HD/3G SDI,1*DVI-I (compatible with HDMI/DVI and VGA)

Video decoding: H.264/AVC

Video resolution

SDI/HDMI: Up to 1080P60Hz

SDI: 1080P60/50, 1080P30/25/24, 1080I60/50, 720P60/50, 570I50, 480I60.

HDMI: 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50 compatible with VESA standard format.



Audio Decoding

SDI/HDMI embedded or 3.5mm audio output

Audio encoding: AAC/G.711

Other Functions

Working mode: 24H

Decoding ability: Up to 4CH


Configuration Interface: web-based UI

Upgraded: via network

Connector: RJ45

Media protocols: SRT/RTMP/HLS/TS over UDP/RTP/RTSP

The Working Environment



Power consumption


Operating Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

AC 220V±10%,50/60Hz


Organizations, Conferences and Worship

Remote Video Conference, Internet TV

IPTV/OTT system, Live Streaming

Government, Education and Music

Video Monitoring, multimedia projects
