Overview:

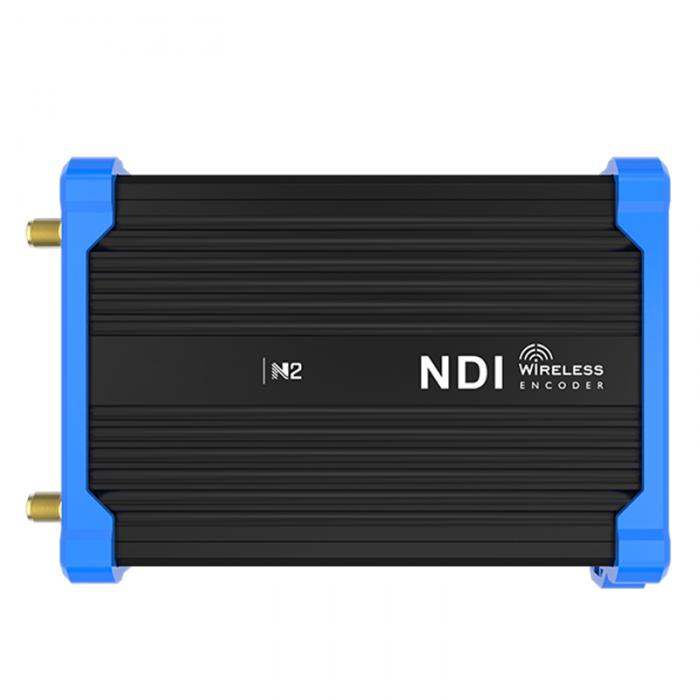

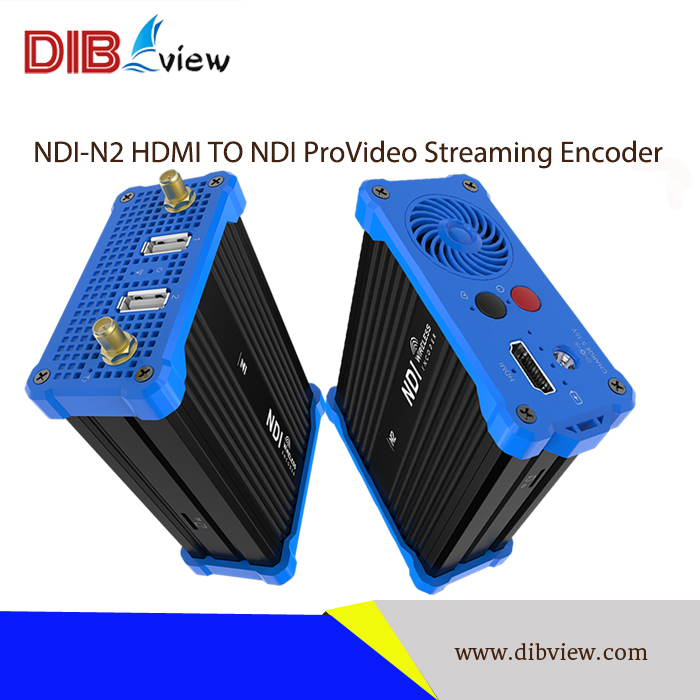

OTV-N2 HD HDMI to NDI ProVideo Streaming encoder is a professional video encoding device for NDI video production. It can encode HDMI video source into NDI protocol stream, and transmit video over wired network or wireless WIFI network which is available for any NDI compatible systems, devices or software.

New Tek NDI is an open network device interface protocol with ultra-low latency, accurate frame video, data stream mutual recognition and communication, makes video real-time production possible.

NDI has become a more convenient and reliable video transmission technology which is widely applied in the video production process. Dibview OTV-N2 Provideo Streaming encoder can directly convert the HDMI into NDI, and realize ultra-low-latency transmission through WIFI (or wired Ethernet) to various other NDI devices or software in the network for interconnecting, to reduce wiring costs and deployment time, and satisfying the needs of studio and on-site multi-camera video production.

Not only 1-channel HDMI, we also produce multi-channel HDMI Streaming Encoder which is packed by 2U or 3U Rack. For 3U rack, support max 16pc independent encoding modules to be installed.

Key Features:

• Enables simple and efficient transmission of video in IP space, compatible with all NDI-enabled systems and devices, and greatly replaces industry-specific connections and transmissions (such as HDMI, SDI, etc.)

• Audio and video sources are transmitted through NDI, can realize ultra-low delay (end-to-end delay of cable is about 150ms), accurate frame video, multi-channel data stream mutual recognition and communication

• Smart connection, discovered and connected by other NDI devices automatically.







• 115*75*35mm, 380g only, hot shoe mounted makes it easy to install the camera

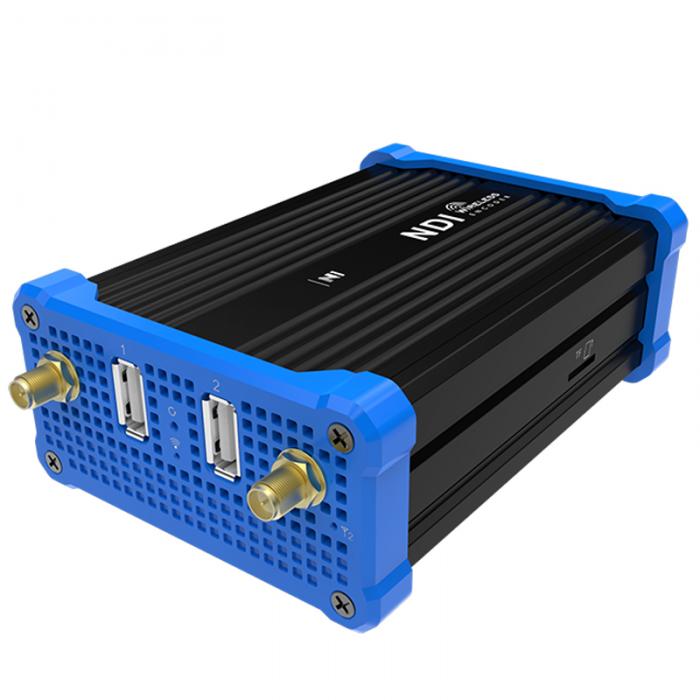

• Built-in 5G enhanced WIFI module can achieve more stable wireless transmission, and support USB expansion of wired network transmission

• Built-in large-capacity lithium battery, supports 5-16v external mobile power supply, no need to consider wired power supply

• Active heat dissipation design (built-in fan) allows it workable under high temperature working conditions with stable and reliable operation

• Easy to operate, it supports wireless remote management using mobile phone/PAD terminal APP

scen

• Using branded chips and H.264 video encoding technology, it combined with video dynamic noise reduction, image enhancement and other technical processing, can achieve low bit rate encoding and ensure high definition image quality


• Support up to 1080p60Hz video format, the output resolution can be customized

• Wide adjustable code rate (64kbit/s to 40Mbit/s)

• Support dual stream output, the main code rate supports video encoding up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding

• Support one-way MJPEG code preview

• Capable with customized text and image overlay function, which can be at any position on the screen

• Support voice intercom function (need to deploy voice intercom software)

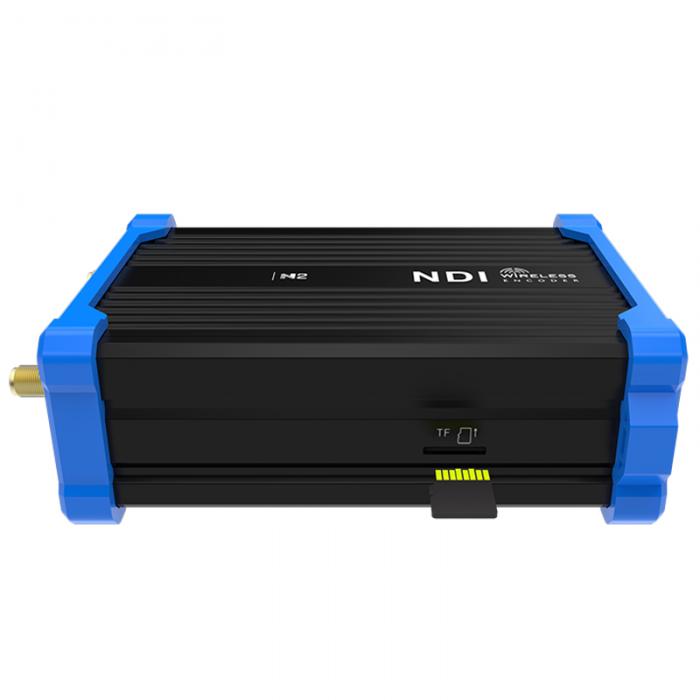

• With SD/TF card slot, it supports local recording, and supports NAS network storage

Technical Specifications:

Applications:

Organizations, Conferences, multimedia projects

Remote Video Conference, Internet TV Broadcast,

IPTV/OTT system, Live Streaming education, Music and etc.
