Overview:

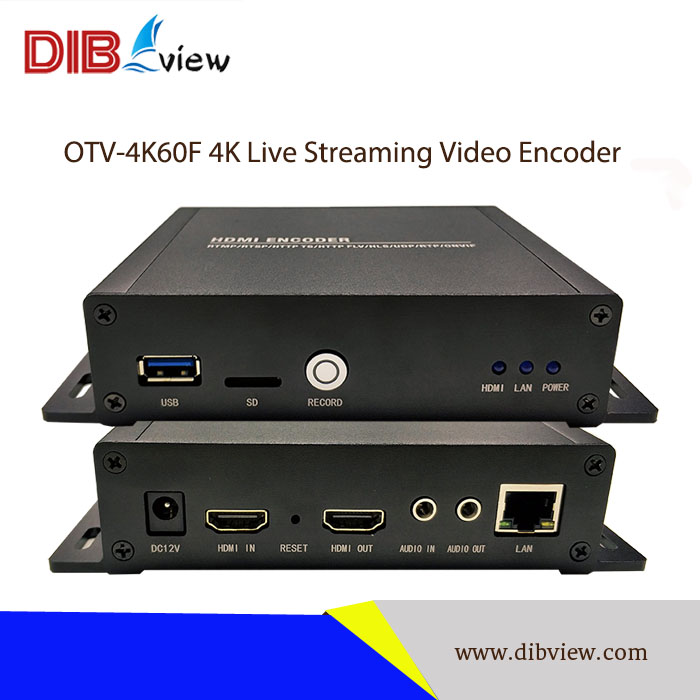

OTV-4K60F ProHD 4K H.265 H.264 Live Video Streaming Encoder are designed to meet the increasing demand for high quality video delivery to Internet and all kinds of terminal devices, features high performance, low latency and low bit rates for IPTV/OTT headend systems, to get video audio real-time transmission by web, and adopts state-of-the-art compression technology of H.265/HEVC, the successor codec compared to H.264, which can compress video twice as efficiently as the previous standard H.264, makes its resolution to be up to 4K 60fps high image quality with extreme low bitrate (even at 1Mbps), further efficiently save the cost of bandwidth.

OTV-4K60F ProHD 4K H.265 H.264 Live Video Streaming Encoder support 1*HDMI input, 1*HDMI Loopout, it can also output 4 channels TS over IP in H.265 HEVC format with multi-screen multi-protocol, multi-resolution to meet the increasing demand for high quality video delivery to Internet and all kinds of terminal devices. It’s become more and more popular to head-end IPTV & OTT systems, Hotel, Hospitality&Health Clubs, Remote live Rebroadcasts and real-time transmission, Digital Signage Project, OTV-4K60F Encoder works with HTTP/HLS/FLV/RTSP/RTMP/RTMPS/UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also, the OTV-4K60F Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.

Key Features:

• Video Input: 1*channel HDMI in,1*HDMI Loopout

• Video resolution up to Full HD 4K@60fps

• Capable of Real-time Recording locally or external storage by USB port.

• Output 4 groups IP streams with different resolution, bitrate and protocol

• Video compression: H.265/HEVC main profile, H.264/AVC baseline/main/high profile

• Audio compression: Dolby AC3,AAC/AAC+/AAC++ /MP3, G.711

• B frame (IBBP) GOP structure

• Video bitrate Control: CBR/VBR 16Kbps~32Mbps

• Video packaging: A mode: FFMPEG, B mode: VLC

• Transmission: 100M/1000M for transmission/configuration(RJ45 Duplex network port).

• Support Text/image OSD, image overlay

• Support automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance

• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

• Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually

• Support encoding without video signal

• Take effect immediately when applied the settings, no need to restart.

• Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications

• Switchable of audio output mode: Left, right and Stereo

• Configurable of Multi-bitrate, Multi-resolution, Multi-protocol

• Providing HLS, RTSP, HTTP, UDP and RTMPs protocol

• Compatible with ONVIF Network Video Protocol

• Any IOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime,

• Anywhere by HLS protocol without install any software players.

• Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMPs protocol with software players(such as VLC).

• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

• Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER,

• compatible with Windows VFW software architecture and WDM mode

• Web-based management

Technical Specifications:

Applications:

Agencies, TV & Pro Radio and Sports

Organizations, Conferences and Worship

Remote Video Conference

IPTV/OTT system

Government, Education and Music

Digital Signage Project

Video Monitoring
